TTL to RS232 Serial Converter Module Interface Board

$9.84

  • Model: TTL-232
  • 10000 Units in Stock

Add to Cart:

Tell a Friend
Write Review

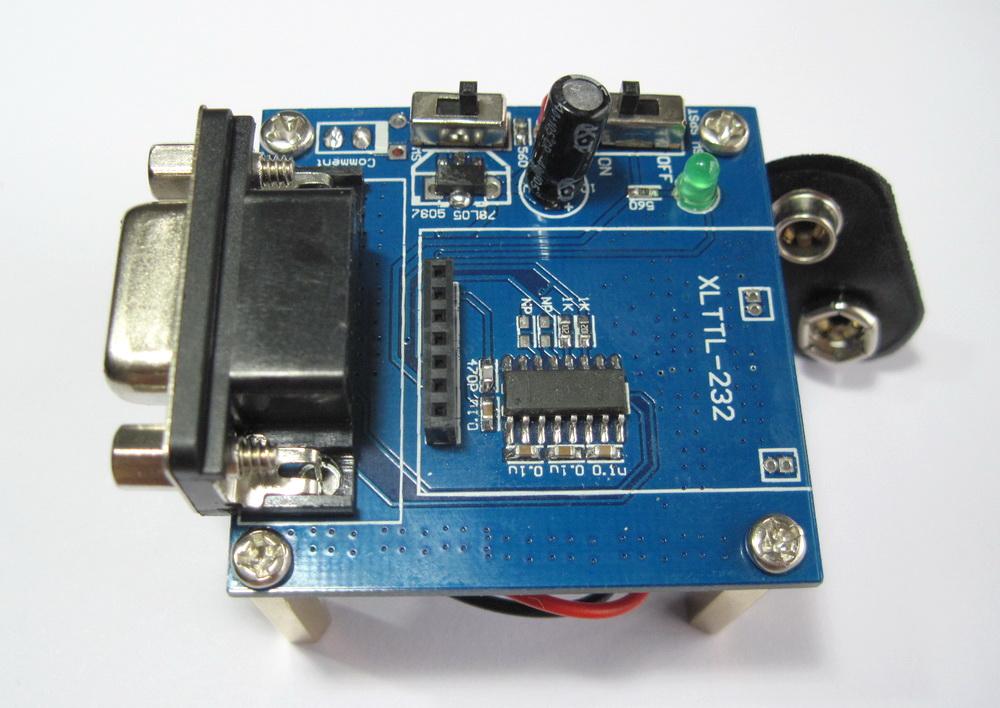

TTL to Serial RS232 Converter Module Interface Board



Introduction:

The adapter fit for wireless serial port module in this shop.





Step:

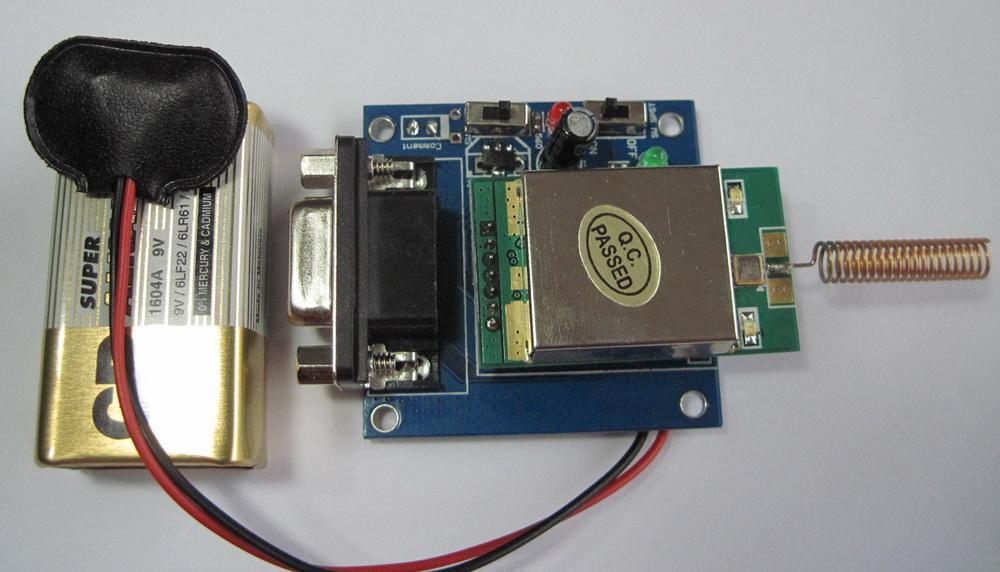

  1. Insert wireless module

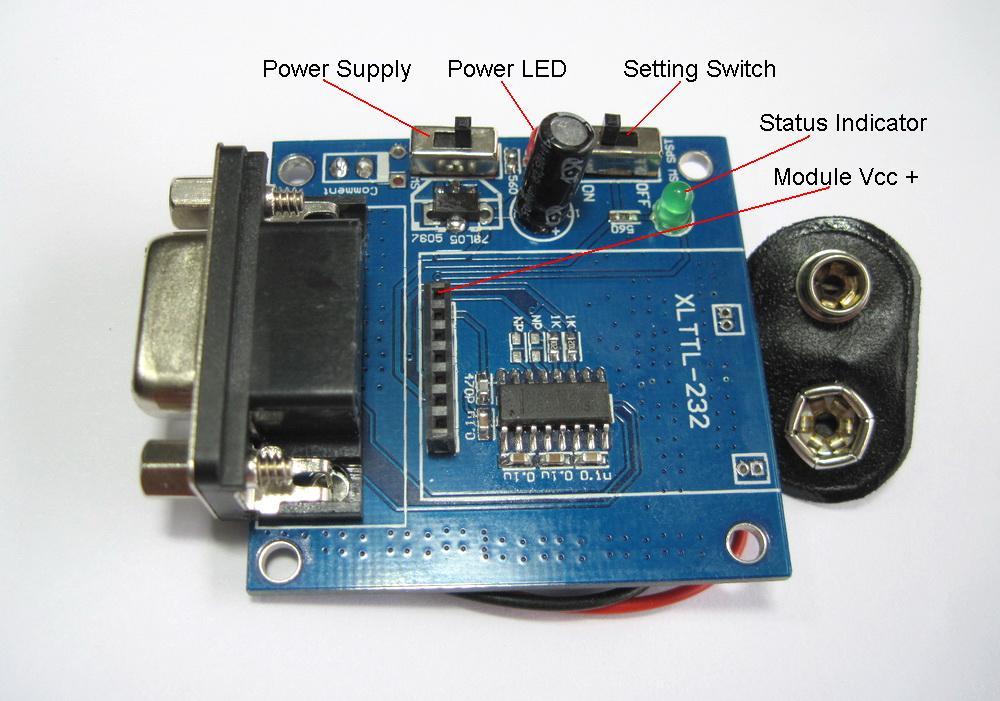

  2. Setting Switch  --->  ON
  3. Connect Computer Serial Port  &  9V Battery ( included )
  4. Power Supply Switch  ---> ON,   Setting Status indicator  ---> Green
  5. Use software setting module parameter



Under normal communication mode,  Setting Switch ---> OFF

  • Operating Temperature:  -20°C  to  +60°C
  • Dimensions:  54 mm (L)  x  45 mm (W)  x  36 mm (H)

RS232 Interface:

Pin Signal Direction Description
2 TxD Output Transmitted data
3 RxD Input Received data
4 Gnd N/A Signal ground
5 CTS Input Clear to send
6 RTS Output Request to send
7 Vcc Input Power supply (optional)









Packing Included

  • 1 x TTL to RS232 Interface Board ( Not include wireless module )

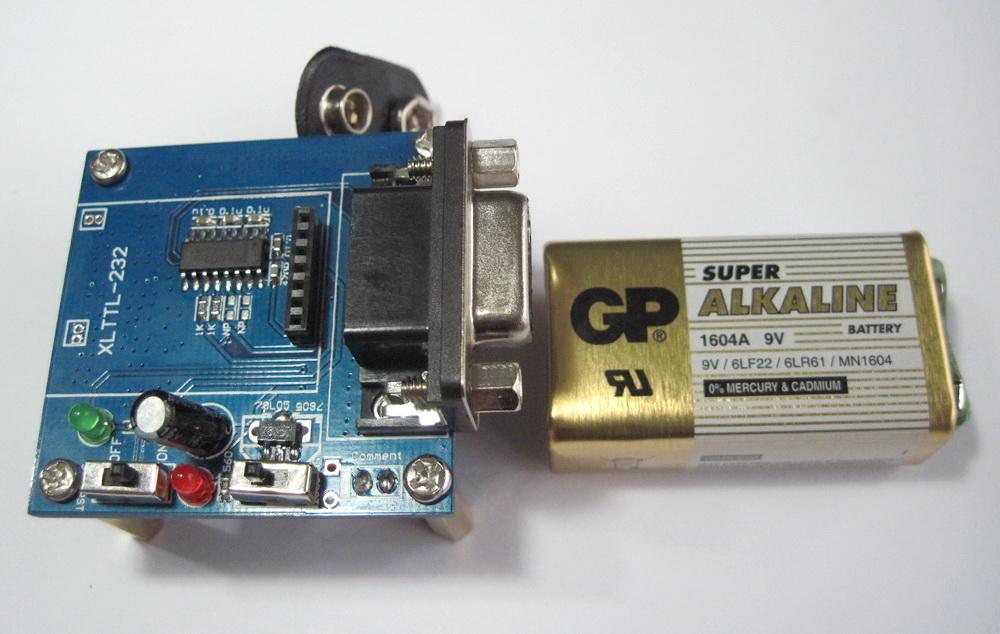

  • 1 x 9V GP Super Alkaline Battery
